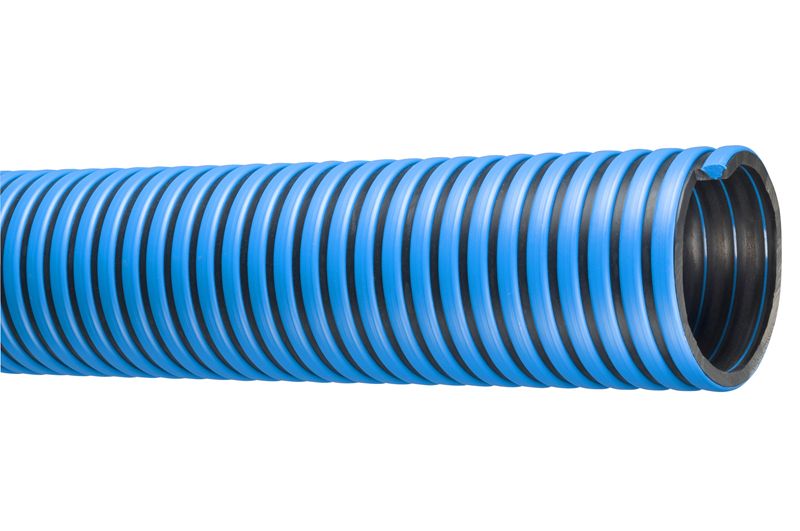

Water Suction and Discharge Hoses

Water Suction and Discharge Hoses

Designed for heavy duty of water suction and discharge service, where rugged yet flexible hose is required both for dewatering and delivery purposes during excavation of mines, project construction, deflooding operations and for handling sewerage, waste water and mud. Type of Hoses : Type 1-Hoses with rough bore, Type 2-Hoses with smooth bore. If the liquids are non-corrosive and do not carry solids in suspension, as in the case with muddy water, rough bore is used in other cases smooth bore is used.


A blend of natural & synthetic rubber compound resistant to water and abrasion.
Natural or synthetic fabric or a combination there of with two helical GS wire (as per IS-280-78) embedded between the reinforcement plies. In case of rough bore, of the two helical wire reinforcements, first is internal and visible from inside and the second is embeded between layers of plies.
Corrugated or plain cloth-marked finish outer cover made from natural rubber compound resistant to abrasion and weather.
Each hose length has soft plain ends on each side for clamping or built in nipples/flanges on request.
-400° F to + 1580° F
Upto 75 mm X 15 meters (Max.) Above 75 mm X 7.5 meters
